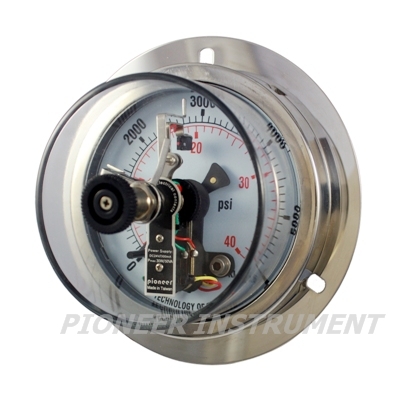

4.0-inch axial stainless photovoltaic-electric contact pressure gauge
Product Brand: PIONEER
Table head diameter: 4.0Inch (100mm)
Pressure range: 0 to 40Mpa / 5800psi
Shell material: stainless steel (SUS304)
The main material: wetted parts SUS316
Transmission components Material: Stainless steel Movement SUS304
Elastic element Material: Bourdon tube (stainless steel SUS316)
Contact switch:Two up contact point (dual normally open), 30W/50VA (220 ~~ 250V)
Contact material: far infrared tube, solid state relays control
Supply Voltage: DC24V
Cover ring material: stainless steel (SUS304)
Table window material: transparent acrylic convex window
Dial material: aluminum (the dual scale Mpa black & psi red)
Scale unit: Mpa (black) / psi (red)
Pointer Material: aluminum (black)
Seals Material: Silicone
Structural style: welded one-piece structure
Lead the way: waterproof connector cable leads (line length 1M) * six core
Accuracy clas
