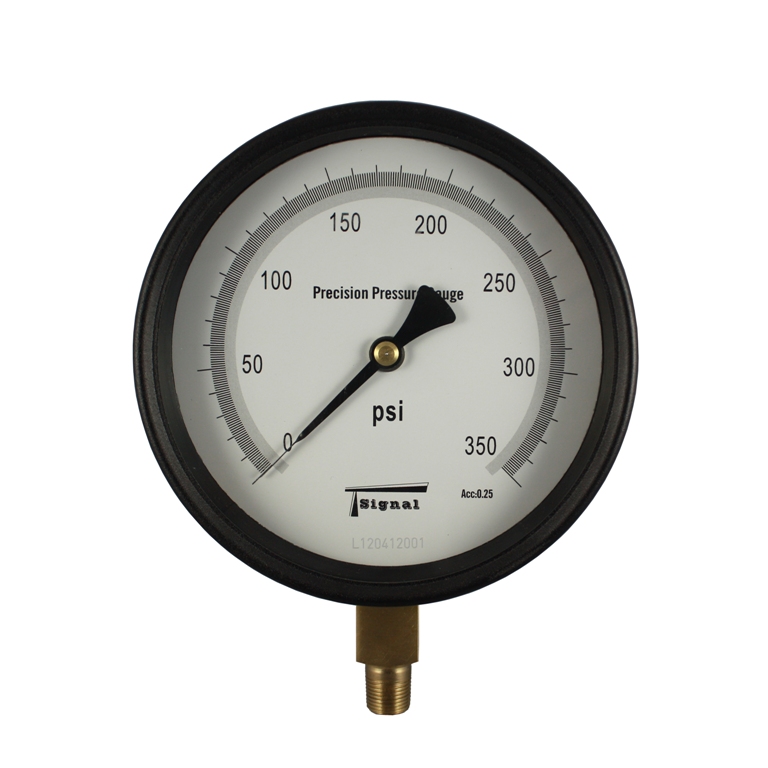

Precision pressure gauge

(Standard pressure gauge, test pressure gauge, laboratory pressure gauge)

Technical parameter

Outside

diameter

100mm(4.0inch)    150mm(6.0inch)    160mm(6.6inch)    200mm(8.0inch)

Installation  form

Radial mounting type, radial back flange type, axial mounting type, shaft forward with edge type, axial plus bracket, shaft forward with bracket

Shell

material

Carbon steel shell (spray paint), cast aluminum shell, stainless steel SUS304

Pointer material

Aluminum (spray paint) knife pointer, steel (electrophoresis) knife pointer, (in accordance with JB/T 9252)

Baden tube material

Phosphorus copper, beryllium copper, chromium steel, stainless steel

Movement material

Brass, brass + stainless iron, Stainless steel +4F

Connection material

Brass, Stainless steel

Dial

material

Plastic, aluminum (white porcelain primer, special specifications can be customized)

Ring cover material

Iron ring cover (electroplating), iron ring cover (paint), stainless steel 1Cr18Ni9Ti, stainless steel SUS304)

window material

Acrylic, Safety glass, Tempered glass, PC(Polycarbonate)

Filling medium

Silicone oil (low viscosity), silicone oil (high viscosity), glycerin (glycerol)

Service temperature

5 ~ 40 ° C (The working temperature is higher than 80 ° C, external heat dissipation device is recommended)

Ambient temperature

The ambient temperature of the working condition is 20±1℃

Relative humidity

10%~80%(RH)

Vibration

level

Not exceeding V.H.2 as specified in GB/T 4439

Class of protection

IP45~IP67(by product structure)

Approved standard

GB/T 1227-2002    JJG 49-1999

Precision

class

0.5%f.s

0.4%f.s

0.25%f.s

0.16%f.s

(Precision watch at room temperature)

Connecting screws

M20*1.5

1/2PT(ZG1/2)

1/2NPT(Z1/2)

G1/2(1/2PF)

(Standard  is M20*1.5, thread can be customized according to user requirements)

Structural style

Ring cover add inner ring, screw locking structure

Ring cover integral flange with inner ring, screw locking structure

Integrated wild card tightening type seal

One-body external shrink bayonet sealing

One-body wild card tightening type seal

Ring cover outer bayonet of the tightened, the joint is welded into one structure

Installation environment

It can be adapted to the working environment of copper alloy, electroplated parts, stainless steel without corrosion, for field or open weather pressure gauge please specify separately.

Additional accessories

Certificate, instruction manual

Precision pressure gauge Conventional pressure range (special range can be customized)

Precision micro pressure and pressure vacuum gauge range

0~0.04 MPa

0~ -0.04 MPa

0~0.05MPa

0~-0.05MPa

0~0.06 MPa

0~-0.06 MPa

-0.02~0~0.02 MPa

-0.01~0~0.03 MPa

-0.025~0~0.025 MPa

-0.01~0~0.04 MPa

-0.03~0~0.03 MPa

-0.01~0~0.05 MPa

-0.02~0~0.04 MPa

Precision vacuum gauge range

-0.1~0 MPa

-760~0 mmHg

-100~0 kPa

-1~0 bar

Low pressure precision pressure gauge and pressure vacuum range

0~0.1 MPa

0~0.16 MPa

0~0.2 MPa

0~0.25 MPa

0~0.4 MPa

0~0.5 MPa

0~0.6 MPa

0~1.0 MPa

0~1.6 MPa

0~2.5 MPa

0~4.0 MPa

0~5.0 MPa

0~6.0 MPa

-0.05~0~0.05 MPa

-0.08~0~0.08 MPa

-0.1~0~0.1 MPa

-0.1~0~0.03 MPa

-0.1~0~0.5 MPa

-0.1~0~0.9 MPa

-0.1~0~1.5 MPa

-0.1~0~2.4 MPa

Medium pressure precision pressure gauge range

0~10 MPa

0~15 MPa

0~16 MPa

0~25 MPa

0~40 MPa

High pressure and ultra-high precision pressure gauge range

0~60 MPa

0~80 MPa

0~100 MPa

0~150 MPa

0~160 MPa

0~250 MPa

0~400 MPa

Scale unit (special dial can be customized, such as color markers, etc.)

MPa

bar

Kpa

psi

mbar

mmHg

inHg

Pa

cmH2O

mmH2O

cmAq

mmAq

kgf/cm2

ibl/inch2

Optional item:
* If used for medium with large pressure pulse can be selected: buffer bend or damper.
* If the pressure gauge needs to be operated without shutdown when not in use or replaced, the optional pressure gauge switch of the pressure gauge and the measured medium must be disconnected.
* For pipe mounting (AT), 45# steel welded base, pressure gauge switch and buffer bend can be supplied as a complete set.
* For panel mounting (DT or ET), optional pressure gauge hose and pressure gauge switch are available.

Applicable media:
Precision pressure gauges can be used to measure all fluid media that do not react with copper alloy, and do not crystallize, do not solidify, have no explosion risk, and are non-toxic and non-highly viscous.

Order instructions:

1, please indicate the required gauge head size.
2, please indicate the range of the required pressure gauge.
3, please indicate the structure of the pressure gauge required.
4, please indicate the required pressure gauge installation direction, method.
5, please indicate the required pressure gauge panel scale unit.
6, please indicate the required pressure gauge connection and interface specifications.
7, please indicate the required pressure gauge measuring medium type, and characteristics.
8, please indicate the accuracy level of the pressure gauge required.
9, please indicate the required pressure gauge to measure the working temperature of the medium and the installation environment temperature and humidity.

Accuracy levels and allowable errors of spring-tube precision pressure gauges and vacuum gauges

Accuracy class

Allowable error value(MPa)

±( Upper limit of the measurement range MPa × 0.16 ÷ 100 )

±( Upper limit of the measurement range MPa × 0.25 ÷ 100 )

±( Upper limit of the measurement range MPa × 0.4 ÷ 100 )

±( Upper limit of the measurement range MPa × 0.6 ÷ 100 )

Overall dimension
